Networking Fundamentals II bridges the gap between introductory theory and hands-on, professional practice. It equips learners with the tools to confidently tackle the real challenges of configuring, optimizing, and maintaining modern computer networks, ensuring stable operation, robust security, and efficient data flow in any organization.

Learning Objectives

1. Course Introduction & Objectives

2. Networking Key Terminology & Glossary

3. Network Topology

4. Networking Devices

5. LAN vs WAN Networks

6. Cabling Standards & Infrastructure

7. Wireless Networking Basics

8. VPN (Virtual Private Network)

9. Conclusion

1. Course Introduction & Objectives

By the end of this tutorial, you will master advanced networking concepts essential for IT professionals. This comprehensive tutorial covers:

Network Terminology: Master 50+ essential networking terms and acronyms used in professional environments.
Network Topologies: Understand physical and logical network layouts, including modern three-tier architectures.
Networking Devices: Compare and configure hubs, switches, routers, and NICs with hands-on labs.
LAN vs WAN: Distinguish between local and wide area networks with real-world applications.
Cabling Standards: Learn proper cable selection and wiring for different network scenarios.
Wireless Networking: Configure SSIDs, encryption, and channel management.
VPN Implementation: Set up secure remote access and site-to-site connections.
Practical Labs: Build functional networks using Cisco Packet Tracer with DHCP and VPN configurations.

2. Networking Key Terminology & Glossary

Understanding networking terminology is crucial for professional communication and technical documentation. [1]

Core Networking Terms

Term	Definition	Real-World Context	Professional Usage
Network	Collection of interconnected devices sharing resources	Home WiFi connecting laptops, phones, printers	"Configure the corporate network for $500$ users"
Node	Any device connected to a network	Computer, printer, smartphone, IoT sensor	"The printer node is not responding to ping requests"
Protocol	Set of rules governing network communication	HTTP for web browsing, SMTP for email	"We need to implement the HTTPS protocol for security"
Bandwidth	Maximum data transfer capacity of a network link	$100$ Mbps internet connection	"Increase bandwidth to handle video conferencing"
Latency	Time delay for data to travel from source to destination	$20$ms ping time to server	"High latency is affecting VoIP call quality"
Throughput	Actual data transfer rate achieved in real conditions	$85$ Mbps on $100$ Mbps connection	"Monitor throughput during peak business hours"
Topology	Physical or logical arrangement of network devices	Star topology in office building	"Design a mesh topology for redundancy"

Essential Network Acronyms

Acronym	Full Form	Purpose	When You'll Use It
TCP/IP	Transmission Control Protocol/Internet Protocol	Internet communication standard	Configuring network interfaces and routing
DNS	Domain Name System	Translates domain names to IP addresses	Troubleshooting website access issues
DHCP	Dynamic Host Configuration Protocol	Automatically assigns IP addresses	Setting up automatic IP management
NAT	Network Address Translation	Allows private networks to access internet	Configuring routers and firewalls
QoS	Quality of Service	Prioritizes network traffic	Ensuring VoIP and video call quality
VLAN	Virtual Local Area Network	Creates separate network segments	Isolating departments or device types
VPN	Virtual Private Network	Secure remote network access	Enabling safe remote work connections
MAC	Media Access Control	Unique hardware identifier	Troubleshooting switch connectivity

Quick Reference Cards

Network Troubleshooting Terms

Ping: Tests connectivity between devices.
Traceroute: Shows network path and delays.
ARP: Maps IP addresses to MAC addresses.
Gateway: Router connecting different networks.
Subnet: Logical division of larger network.

Performance Measurement Terms

Jitter: Variation in packet delay times.
Packet Loss: Percentage of data packets not received.
MTU: Maximum transmission unit size.
Duplex: Half (one-way) or full (two-way) communication.

3. Network Topology

Network topology determines how devices connect and communicate, affecting performance, cost, and reliability. [2]

Physical Network Topologies

Bus Topology

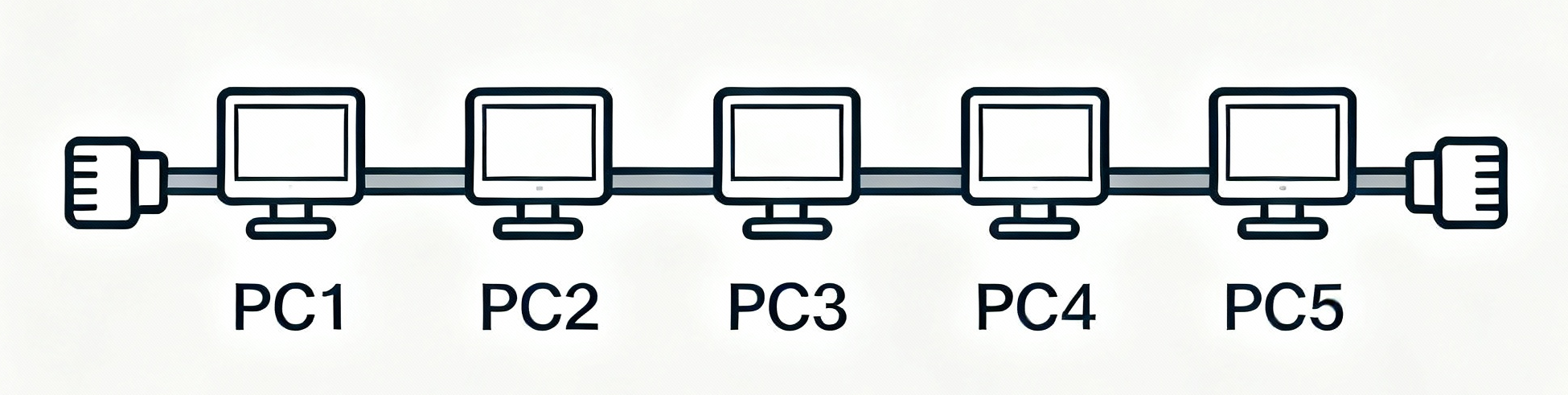

Bus topology is a type of network design, or layout, in which all devices (computers, printers, etc.) are connected to a single central cable called the "bus." This main cable acts as a shared communication medium, and signals are sent along the bus, allowing devices to communicate with each other.

Key Features of Bus Topology

Single Backbone Cable: All network devices are joined to one central cable.
Data Transmission: When a device sends data, the signal travels in both directions along the bus to all other devices.
Terminators: Both ends of the bus cable have terminators to prevent signal bounce (interference from reflections).
Simple Design: Easy and inexpensive to set up for small networks.

Advantages:

Low cost implementation.
Simple installation.
Requires minimal cabling.

Disadvantages:

Single point of failure (cable break affects entire network).
Difficult to troubleshoot problems.
Performance degrades with more devices.
Limited cable length (185-500 meters).

Real-World Usage: Legacy systems, temporary networks, small office setups (mostly obsolete).

Star Topology

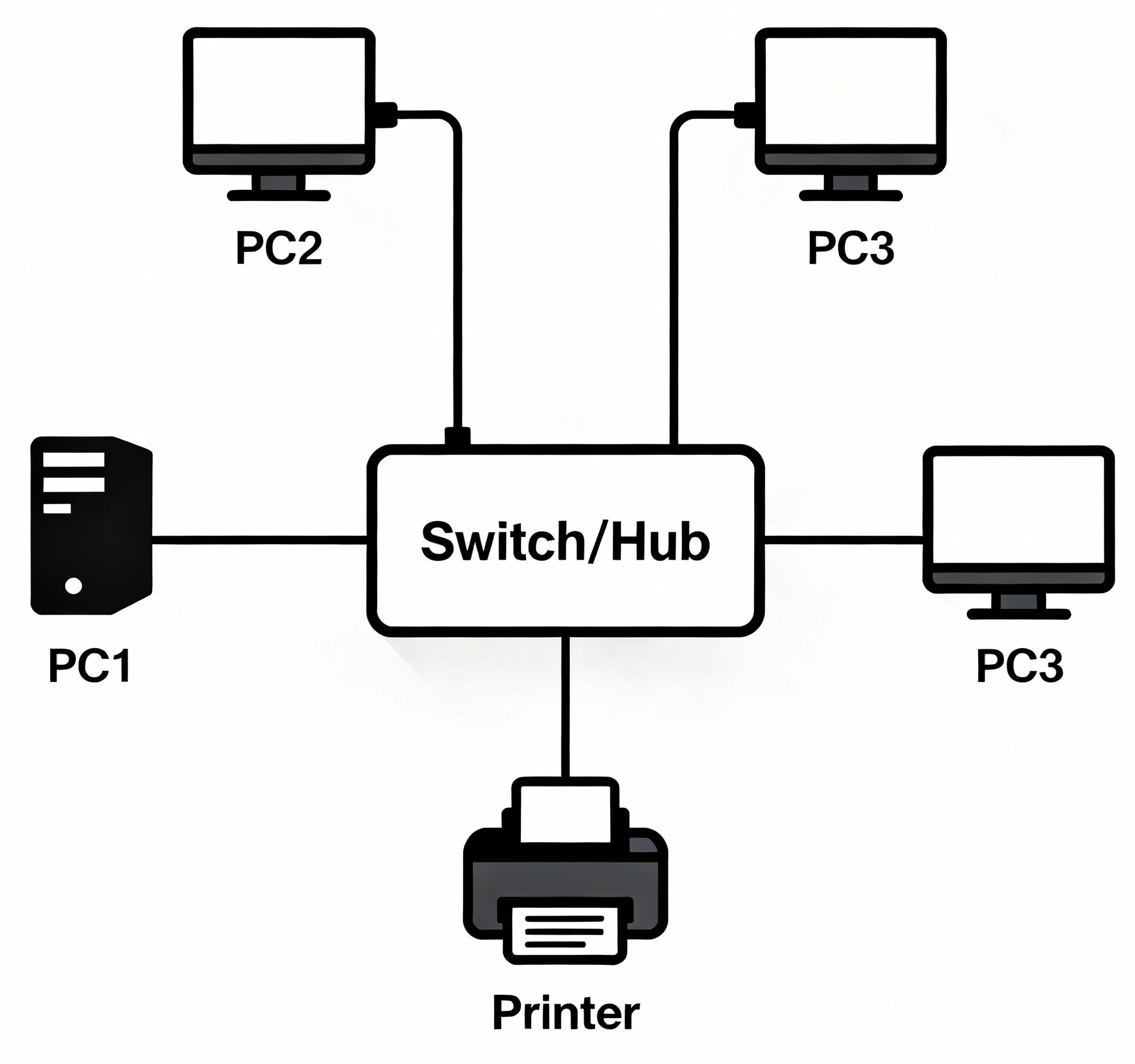

Star Topology is a network layout in which all devices (computers, printers, etc.) are individually connected to a central device such as a switch or hub. This central device acts as the main point for all network communication.

[Switch/Hub] is the central device.

Key Features of Star Topology

Central Connection Poin: Every device has a dedicated cable connecting it directly to the central switch or hub.
Data Transmission: Data sent from any device has to pass through the central device before reaching its destination.
Isolation: Both ends of the bus cable have terminators to prevent signal bounce (interference from reflections).

Advantages:

Easy to install and manage.
Failure of one device doesn't affect others.
Simple troubleshooting (isolate individual connections).
Easy to add/remove devices.

Disadvantages:

Central device failure brings down entire network.
Requires more cable than bus topology.
Limited by central device capabilities.

Real-World Usage: Office networks, home routers, enterprise LANs

Ring Topology

Ring Topology is a type of network layout in which each device (node) is connected to exactly two other devices, forming a closed loop or ring. Data travels around the ring in one or both directions, passing through each device until it reaches its destination.

Key Features of Ring Topology

Central Connection Point: Every device has a dedicated cable connecting it directly to the central switch or hub.
Data Transmission: Data sent from any device has to pass through the central device before reaching its destination.
Isolation: If one cable fails, only the attached device is affected; the rest of the network continues to function.

Advantages:

Equal access for all devices.
Predictable performance.
No central point of failure.
Efficient for high-traffic networks.

Disadvantages:

Entire network fails if one connection breaks.
Difficult to add/remove devices.
Troubleshooting is complex.
Slower than switched networks.

Real-World Usage: IBM Token Ring networks (legacy), metropolitan area networks, some industrial control systems. [3]

Mesh Topology

Mesh Topology is a network layout in which every device (node) is directly connected to every other device in the network, creating a web-like structure with multiple pathways for data to travel.

Full Mesh:           Partial Mesh:
PC1 --- PC2          PC1 --- PC2
 |   X   |            |       |
 |  X X  |           PC4 --- PC3
PC4 --- PC3

Key Features of Mesh Topology

Direct Connections: Each node connects directly to all others (full mesh), or at least to several others (partial mesh).
Redundant Paths: Multiple paths exist between any two devices, providing alternative routes if one connection fails.
High Reliability: Network remains operational even if several connections or devices fail.

Advantages:

Maximum redundancy and reliability.
No single point of failure.
Self-healing (automatic rerouting).
High security (difficult to intercept).

Disadvantages:

Expensive (many cables and interfaces required).
Complex installation and management.
High maintenance overhead.

Real-World Usage: Internet backbone, military networks, financial trading systems, data centers.

Logical Network Topologies

Logical topology describes how data flows through the network, regardless of physical connections.

Logical Bus

All devices share same communication medium.
Ethernet uses logical bus over physical star.
CSMA/CD protocol manages access.

Logical Ring

Data passes through each device sequentially.
Token Ring and FDDI use this approach.
Deterministic access control.

Modern Network Architectures

The three-tier network architecture is a well-established approach to organizing large campus or enterprise networks for scalability, reliability, and manageability. It divides the network into three distinct layers, each with specialized functions:

Three-Tier Architecture

CORE LAYER (Layer 3)
├── High-speed routers
├── Redundant links
└── Campus backbone

DISTRIBUTION LAYER (Layer 2/3)
├── Departmental aggregation
├── Policy enforcement
└── VLAN routing

ACCESS LAYER (Layer 2)
├── End-user connectivity
├── Switches and wireless APs
└── Port security

1. Core Layer (Layer 3)

Role: The backbone of the entire network, responsible for high-speed, reliable transport of large volumes of data.

Functions:

High-speed routers: Fast Layer 3 (IP) routing to efficiently move packets between different parts of the network.
Redundant links: Multiple paths and links to ensure continuity and failover; critical for minimizing downtime.
Campus backbone: Connects multiple buildings, distribution layers, and major sections of an organization.

Explanation:

The core layer is designed for speed and reliability—not for network access, filtering, or policy enforcement. Its focus is transporting traffic as quickly as possible across the enterprise.

2. Distribution Layer (Layer 2/3)

Role: The "middleman" between the core and access layers; aggregates connectivity and enforces controls.

Functions:

Departmental aggregation: Connects multiple access layer switches, typically by department or building.
Policy enforcement: Implements access control lists (ACLs), security policies, and Quality of Service (QoS).
VLAN routing: Performs routing between VLANs (virtual LANs) using Layer 3 switches or routers.

Explanation:

The distribution layer is responsible for organizing traffic from access devices, enforcing organizational policies, and managing inter-VLAN routing. It often acts as the boundary for network segmentation and security controls.

3. Access Layer (Layer 2)

Role: Provides end-user connectivity—where devices such as computers, phones, and printers join the network.

Functions:

End-user connectivity: Direct connections for devices via Ethernet or wireless.
Switches and wireless APs: Layer 2 switches and wireless Access Points distribute connections to individual users.
Port security: Controls which devices are allowed to connect to the network ports, preventing unauthorized access.

Explanation:

The access layer interfaces with users and devices. It’s optimized for flexibility, density, and security controls at the port level, such as MAC filtering and limiting physical connections.

Summary Table

Layer	Primary Devices	Main Functions
Core (L3)	Routers, backbone switches	High-speed routing, redundancy, packet switching
Distribution (L2/L3)	Layer 3 switches, routers	Aggregation, policy, VLAN routing, boundary definition
Access (L2)	Switches, wireless APs	User/device connectivity, security, PoE, collision domain control

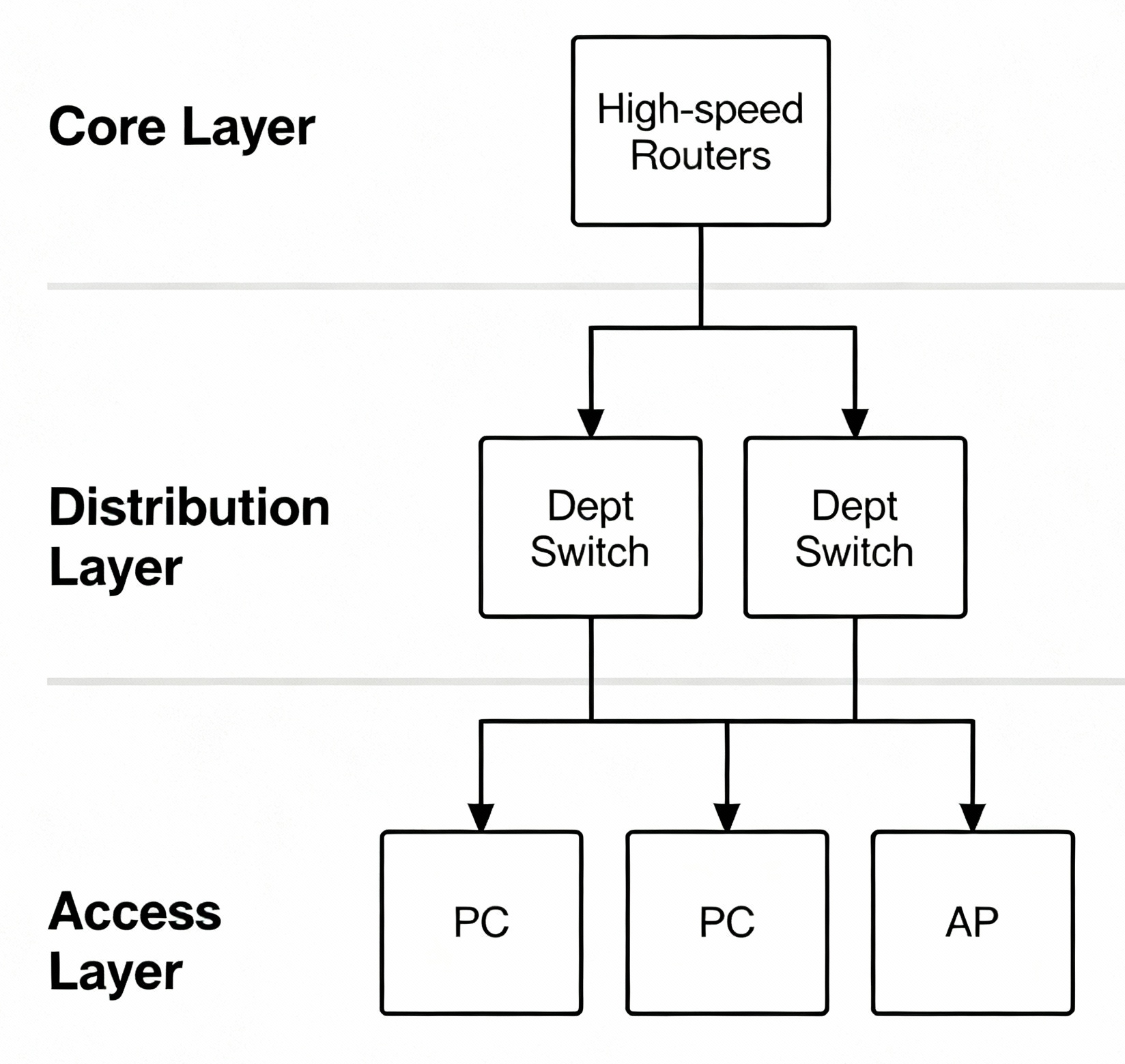

Diagram:

Three-tier hierarchical network architecture showing core layer with high-speed routers, distribution layer with department switches, and access layer with PC workstations and wireless access points

Why Use Three-Tier Architecture?

Scalability: Easily grow the network by adding more access and distribution devices.
Performance: Dedicated layers prevent congestion and allow optimization for specific network functions.
Manageability & Security: Policies and configurations are easier to organize and enforce at appropriate layers.
Reliability: Redundant paths in the core ensure network resilience.

Core Layer Functions:

High-speed packet forwarding.
Redundancy and fault tolerance.
Connection to internet and WAN.
No policy enforcement (speed priority).

Distribution Layer Functions:

Aggregates access layer connections.
Implements security policies.
VLAN routing and filtering.
Load balancing and QoS.

Access Layer Functions:

Connects end-user devices.
Port security and authentication.
Power over Ethernet (PoE).
Basic switching functions.

Topology Selection Criteria

Criteria	Bus	Star	Ring	Mesh	Hybrid
Cost	Low	Medium	Medium	High	Variable
Scalability	Poor	Good	Fair	Excellent	Excellent
Fault Tolerance	Poor	Fair	Poor	Excellent	Good
Performance	Decreases	Consistent	Consistent	High	Optimized
Management	Difficult	Easy	Complex	Complex	Moderate
Best Use Case	Legacy/Temporary	Office LANs	Industrial	Critical systems	Enterprise

Topology Troubleshooting Scenarios

Single Points of Failure

Star topology: Central hub/switch failure.
Tree topology: Root node failure.
Solution: Implement redundant central devices

Network Bottlenecks

Bus topology: Shared medium saturation.
Tree topology: Central device bandwidth limits.
Solution:Upgrade central device or implement load balancing.

Single Points of Failure

Star topology: Central hub/switch failure.
Tree topology: Root node failure.
Solution: Implement redundant central devices

4. Networking Devices

Understanding the differences between networking devices is crucial for proper network design and troubleshooting. [4] [5]

Device Comparison Table

Device	OSI Layer	Function	Intelligence Level	Data Unit	Addressing
Hub	Physical (1)	Repeats signals to all ports	None	Bits	None
Switch	Data Link (2)	Forwards based on MAC address	Medium	Frames	MAC addresses
Router	Network (3)	Routes between networks (LANs/WANs)	High	Packets	IP addresses
NIC	Physical/Data Link (1/2)	Network interface for devices (media access)	Basic	Bits/Frames	MAC address

Hub (Network Hub)

A hub (network hub) is a basic networking device used to connect multiple computers or devices together in a local area network (LAN). Its primary purpose is to serve as a central connection point for devices in a network segment.

Real-World Analogy: The Loudspeaker in a Classroom

Imagine a classroom where students want to talk to each other, but they all have to use a single loudspeaker at the front.

Whenever a student (computer) has something to say (sends data), they walk to the loudspeaker (hub) and speak into it.
Whatever is said into the loudspeaker is heard by everyone in the classroom (all connected devices), not just the person it was meant for.
The right person listens and responds, others just ignore what wasn't for them.

Step-By-Step Working of a Hub

A computer sends data to the hub:

For example, PC1 wants to send a message to PC3. PC1 sends the data to the hub.

The hub receives the data:

The hub takes in the electrical signal from PC1.

The hub broadcasts the data to all connected devices:

The hub instantly repeats the signal—sending the data out to all of its ports. This means every connected PC (PC2, PC3, PC4, etc.) gets the same data.

Only the intended recipient accepts it, others discard:

Each computer checks if the data is meant for it. PC3, seeing it’s for itself, keeps the data. The others (PC2, PC4) ignore it.

Network hub topology diagram showing uplink connection, central hub with half-duplex shared collision domain connecting three PCs broadcasting frames to all ports

Characteristics:

Physical layer device (Layer 1).
Multiport repeater.
Half-duplex communication.
Single collision domain.
Shared bandwidth among all ports.

Modern Usage:

Largely obsolete in modern networks.
Replaced by switches for better performance.
Still used in some legacy industrial systems.

Switch (Network Switch)

A switch (network switch) is a device that connects multiple computers or devices in a network and smartly sends data only to the device it's meant for.

Real-World Analogy:

Think of a switch like a post office clerk. If you hand over several letters for neighbors in your town, the clerk puts each letter directly into the correct mailbox. Only the person with that mailbox gets the letter; no one else does. This is how switches deliver data in a network.

How Does a Switch Work?

A device sends data to the switch:

For example, Computer A wants to send a file to Computer C. It sends the file to the switch.

The switch checks the MAC address table:

Every device has its own unique MAC address (like a house address). The switch keeps a list (table) of which MAC address is on which port (plug).

The switch forwards data only to the target device:

Instead of sending the file to ALL computers, the switch looks up the destination MAC address and sends the data straight to Computer C's port—no one else gets the file.

Devices can talk at the same time without problems:

Because the switch is smart and sends data only where it’s needed, multiple computers can communicate at once, with no interruptions or data “collisions”.

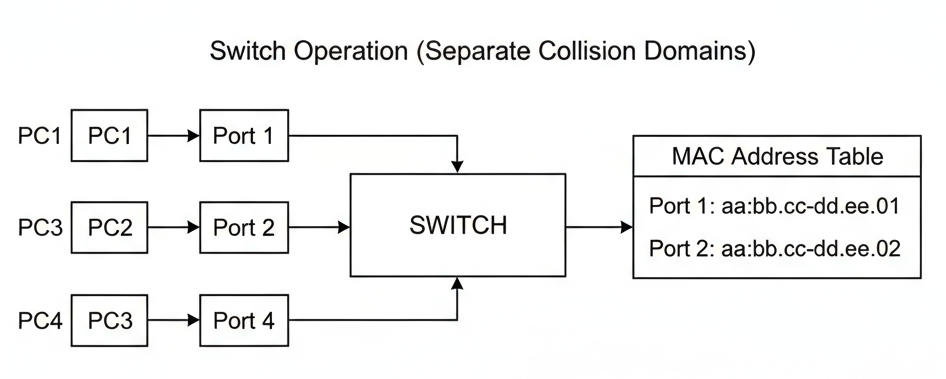

Network Switch Operation Diagram - How a Layer 2 Switch Processes Data Frames using MAC Address Tables

Characteristics:

Data Link layer device (Layer 2).
Maintains MAC address table.
Full-duplex communication.
Each port is separate collision domain.
Dedicated bandwidth per port.

Key Features:

MAC Address Learning: Builds table of device locations.
Forwarding/Filtering: Sends frames only where needed.
Loop Prevention: Spanning Tree Protocol support.
VLANs: Creates virtual network segments

Configuration Example:

Switch(config)# interface fastethernet0/1
Switch(config-if)# switchport mode access
Switch(config-if)# switchport access vlan 10

Router (Network Router)

A router (network router) is a device that connects different networks together and directs data packets to their correct destinations.

Real-World Analogy:

Think of a router like a traffic police officer at a busy intersection. The officer checks where cars want to go (the destination address) and directs each car down the right road so everything arrives safely and smoothly. Or, think of it as a GPS for your data packets.

How Does a Router Work?

A device sends data to the router:

For example, your laptop sends a web request.

The router receives the data:

The router checks the Internet Protocol (IP) address on the data packet.

Router checks the destination IP address:

The router looks at its routing table to figure out the best path for the data.

Router sends the data on the best path:

If the destination is another local device, the router sends it directly. If it needs to go to the Internet, the router forwards it to the next router or to your Internet Service Provider (ISP).

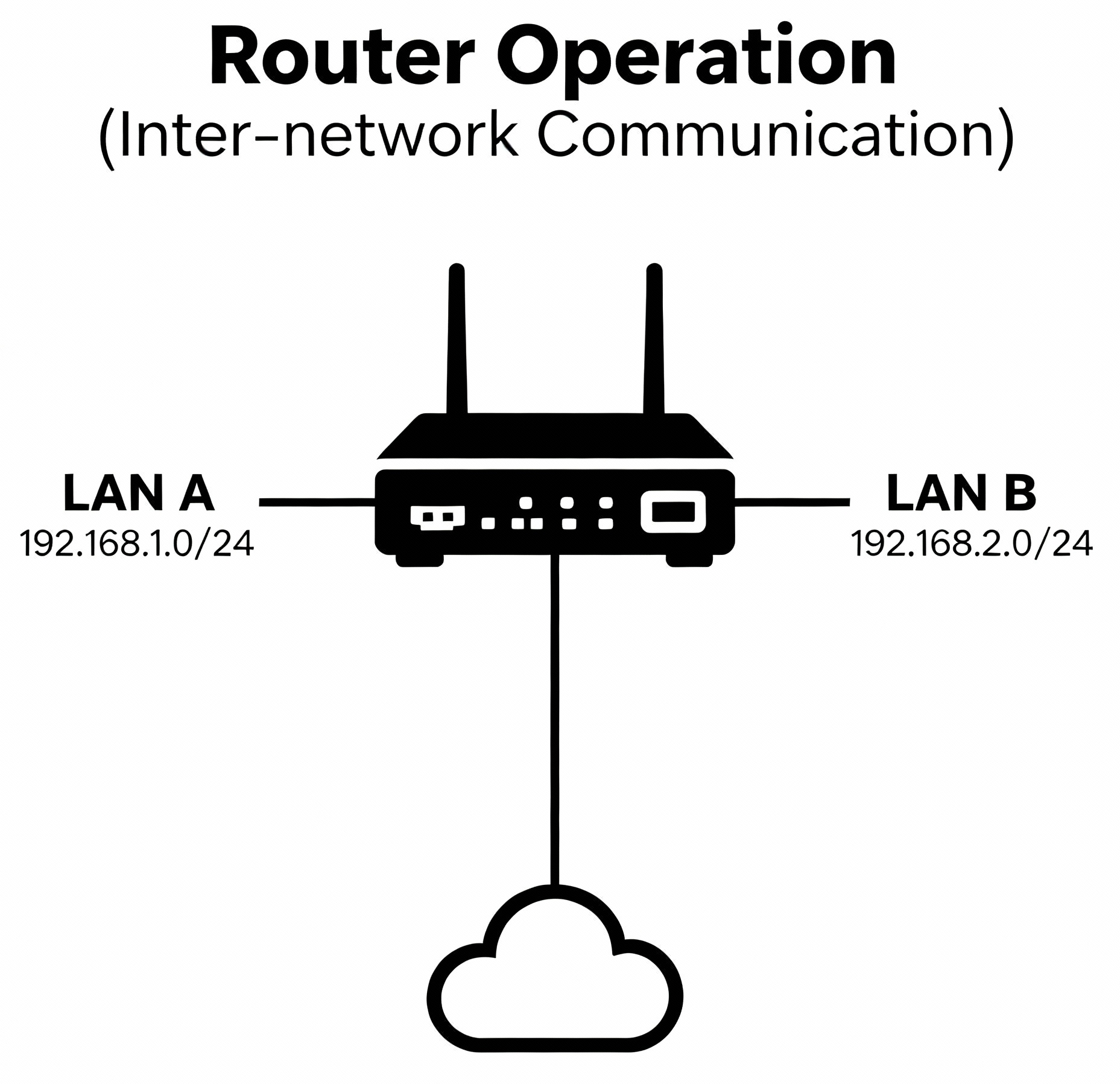

Router operation diagram showing inter-network communication between LAN A (192.168.1.0/24) and LAN B (192.168.2.0/24) connected through central router with cloud internet connection

Characteristics:

Network layer device (Layer 3).
Routes packets between different networks.
Maintains routing table.
Connects LANs, WANs, and internet.
Provides network segmentation.

Key Features:

Routing: Path determination between networks.
NAT: Network Address Translation for private networks.
DHCP: Automatic IP address assignment.
Firewall: Basic security filtering.
QoS: Traffic prioritization

Configuration Example:

Router(config)# interface gigabitethernet0/0
Router(config-if)# ip address 192.168.1.1 255.255.255.0
Router(config-if)# no shutdown
Router(config)# ip route 0.0.0.0 0.0.0.0 203.0.113.1

Network Interface Card (NIC)

A Network Interface Card (NIC) is a small hardware component inside your computer that acts as both a translator and a passport for connecting to networks like the internet.

How Does a NIC Work?

Translator:

Your computer only understands digital data (ones and zeros). But to send this data over a network—whether through cables (Ethernet) or wireless signals (Wi-Fi)—the NIC converts digital information:

For Ethernet, the NIC turns digital data into electrical pulses that travel through wires.
For Wi-Fi, it turns the data into radio waves sent through the air.
When data arrives from the network, the NIC translates it from signals (pulses/radio waves) back into digital data your computer understands.

Passport:

Every NIC has a unique address called a MAC address (like a passport number). This lets networks recognize your device, so your computer gets the information meant for it and not someone else's.

Characteristics:

Physical/Data Link layer device (Layer 1/2).
Provides network connectivity for end devices.
Has unique MAC address.
Converts between digital data and network signals.
Available as wired (Ethernet) or wireless (Wi-Fi).

Functions:

Media Access: Controls when device can transmit.
Error Detection: Checks frame integrity.
Address Recognition: Filters frames for device.
Protocol Support: Implements Ethernet, Wi-Fi standards.

Types:

Ethernet NIC: RJ-45 connector, 1 Gbps typical.
Wireless NIC: 802.11ac/ax, multiple antennas.
Server NICs: Multiple ports, high-speed (10/25/40 Gbps).

Network Interface Card (NIC)

NIC Type	Speed	Connector	Use Case
Ethernet	10 Mbps - 100 Gbps	RJ-45, SFP+	Wired LAN connections
Wireless	54 Mbps - 9.6 Gbps	Internal antenna	WiFi connectivity
Fiber	1 Gbps - 400 Gbps	SC, LC, MPO	High-speed, long-distance

Device Selection Guide

Scenario	Recommended Device	Reason
Small home network	Router with built-in switch	Cost-effective, multiple functions
Office department	Managed switch	VLAN support, port security
Building backbone	Layer 3 switch	High-speed inter-VLAN routing
Internet connection	Router with WAN interface	NAT, firewall, routing protocols
Data center	Top-of-rack switches	High port density, low latency

5. LAN vs WAN Networks

Understanding the distinction between Local Area Networks (LANs) and Wide Area Networks (WANs) is essential for network planning and implementation.

Local Area Network (LAN)

Definition: Network covering small geographical area, typically single building or campus.

Real-World Examples:

Home network connecting computers, phones, smart devices.
Office network connecting workstations, printers, servers.
School computer lab with 30 student computers.
Manufacturing floor with industrial control systems.

LAN Examples:

Network topology comparison between a home network (consumer router, WiFi devices, smart TV, basic switch) and an office network (enterprise firewall, core switch, department switches, server farm)

Common LAN Technologies:

Technology	Speed	Cable Type	Distance Limit
Fast Ethernet	100 Mbps	Cat5e	100 meters
Gigabit Ethernet	1 Gbps	Cat6	100 meters
10 Gigabit Ethernet	10 Gbps	Cat6a/Fiber	100m/10km
Wi-Fi 6	1-9 Gbps	Wireless	~70 meters

Wide Area Network (WAN)

Definition: Network spanning large geographical areas, connecting multiple LANs across cities, countries, or continents.

Real-World Examples:

Corporate headquarters connecting to branch offices.
Internet connecting global networks.
Bank ATM network connecting to central servers.
Cloud services accessed from multiple locations.

WAN Examples:

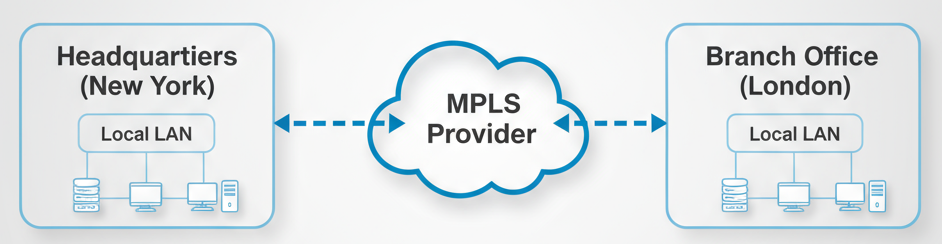

WAN topology diagram showing MPLS provider connecting New York Headquarters to London Branch Office via local LAN infrastructures

Common WAN Technologies:

Technology	Speed Range	Use Case	Typical Cost
DSL	1-100 Mbps	Small business internet	$50-200/month
Cable Internet	10-1000 Mbps	Home/small office	$30-150/month
Fiber Internet	100 Mbps-10 Gbps	Enterprise connectivity	$200-5000/month
MPLS	1 Mbps-10 Gbps	Corporate networks	$500-10000/month
Satellite	1-100 Mbps	Remote locations	$100-1000/month

LAN vs WAN Comparison

Aspect	LAN (Local Area Network)	WAN (Wide Area Network)
Geographic Coverage	Building/Campus	City/Country/Global
Ownership	Private	Leased/Public
Speed	Very High (1-100+ Gbps)	Variable (1 Mbps-10 Gbps)
Latency	Very Low (< 1ms)	Higher (10-300ms)
Error Rate	Very Low	Higher
Security	Inherently more secure	Requires additional security
Cost	Low operational cost	High bandwidth/leasing costs
Management	Local IT team	Service provider + local team
Reliability	High (redundant paths)	Depends on service provider
Technology	Ethernet, WiFi	MPLS, Internet, Satellite, Cellular

Network Design Considerations

LAN Design Priorities:

Performance: Minimize latency and maximize throughput.
Security: Control physical and logical access.
Scalability: Easy addition of new devices and users.
Cost: Balance performance with budget constraints.

WAN Design Priorities:

Connectivity: Reliable links between locations.
Bandwidth: Adequate capacity for applications.
Redundancy: Backup connections for critical links.
Security: Encryption and access control over public networks.

6. Cabling Standards & Infrastructure

Proper cabling is the foundation of reliable network performance.

Cabling Standards & Infrastructure refer to the official rules, guidelines, and physical systems used to organize, install, and manage wires (like Ethernet or fiber cables) that connect network devices. These standards ensure cables are safe, reliable, and compatible—helping networks work smoothly and making it easy to expand or troubleshoot.

Ethernet Cable Categories

An Ethernet cable is a type of wired cable used to connect computers, routers, switches, and other devices in a network, allowing them to communicate and share data quickly. It’s the standard cable for most local area networks (LANs) and looks like a thicker phone cable with special connectors (called RJ45 plugs) on each end.

Category	Max Speed	Max Distance	Frequency	Applications
Cat5e	1 Gbps	100 meters	100 MHz	Basic Gigabit Ethernet
Cat6	10 Gbps*	55m (10G), 100m (1G)	250 MHz	High-performance networks
Cat6a	10 Gbps	100 meters	500 MHz	Data centers, future-proofing
Cat7	10 Gbps	100 meters	600 MHz	Shielded applications
Cat8	25-40 Gbps	30 meters	2000 MHz	Data center interconnects

*Note: Cat6 can only sustain 10 Gbps up to 55 meters.

Straight-Through Cable (Standard)

A Straight-Through Cable is a network cable in which the wiring on both ends follows the same pin order (standard T568A or T568B). This means each wire connects to the corresponding pin at each connector.

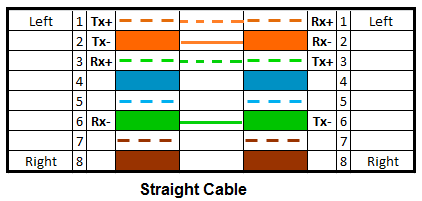

Ethernet straight-through cable wiring diagram illustrating standard T568B to T568B pinout with identical transmit and receive pairs on both ends for device-to-switch connection

Usage

PC to switch.
Router to switch.
Switch to hub.

Crossover Cable

A crossover cable is a special type of Ethernet cable where the transmit and receive wires are “crossed over.” This means the wires that send signals from one device connect directly to the wires that receive signals on the other device.

Usage

PC to PC (direct connection)
Switch to switch (older equipment).
Router to router.
Hub to hub.

*Note: Modern devices support Auto-MDIX, making crossover cables less necessary.

Color Code Reference Table

Wire Pair	T568A (Color/Stripe)	T568B (Color/Stripe)	Function (Standard Use)
Pair 1 (Pin 1 & 2)	Green/White, Green	Orange/White, Orange	Transmit Data (TX+) / (TX-)
Pair 2 (Pin 3 & 6)	Orange/White, Orange	Green/White, Green	Receive Data (RX+) / (RX-)
Pair 3 (Pin 4 & 5)	Blue/White, Blue	Blue/White, Blue	Bidirectional Data (Voice/Power)
Pair 4 (Pin 7 & 8)	Brown/White, Brown	Brown/White, Brown	Bidirectional Data (Voice/Power)

*Note: Pins 1, 2, 3, and 6 are used for data transmission in 10/100BASE-T Ethernet. All 8 pins are used in Gigabit (1000BASE-T) and faster standards.

Cable Testing and Certification

Essential Tests:

Continuity: All wires connected properly.
Wire Map: Correct pin-to-pin connections.
Length: Within category specifications.
NEXT: Near-End Crosstalk measurements.
Return Loss: Signal reflection levels.

Certification Tools:

Fluke DSX-5000 (professional certification).
Klein Tools VDV Scout Pro (basic testing).
Ideal NaviTek (mid-range certification).

7. Wireless Networking Basics

Wireless networking lets devices communicate without physical cables, using radio waves. The two most common wireless technologies are:

Wi-Fi: Used for high-speed data connections in homes, businesses, and public spaces.
Bluetooth: Used for short-range connections, mainly for pairing smartphones with headphones, speakers, keyboards, and IoT devices.

Benefits of Wireless Connectivity:

Mobility: : Move freely within the network’s coverage area.
Easy Setup: No cabling needed, especially useful in homes, offices, or places hard to wire.
Device Variety: Laptops, smartphones, tablets, smart TVs, printers, wearables, and smart home devices all commonly use wireless connections.

Real-world example: At a coffee shop, customers use their phones and laptops over public Wi-Fi without plugging in a cable.

Wi-Fi Standards Evolution

Standard	Year	Frequency Bands	Max Speed	Max Range	Key Features
802.11n (Wi-Fi 4)	2009	2.4 GHz & 5 GHz	600 Mbps	~70 m indoors	MIMO (multiple antennas), channel bonding
802.11ac (Wi-Fi 5)	2014	5 GHz	6.9 Gbps	~35 m indoors	MU-MIMO, Beamforming
802.11ax (Wi-Fi 6)	2019	2.4, 5 & 6 GHz	9.6 Gbps	Up to 80 m indoors	OFDMA, Advanced MU-MIMO, Target Wake Time
802.11be (Wi-Fi 7)	2024	2.4, 5 & 6 GHz	46 Gbps	Similar to Wi-Fi 6	Multi-Link Operation, 320 MHz channels, Advanced OFDMA

*Note: Max speeds are theoretical and dependent on various factors like channel width and MIMO streams.

Key Terms:

MIMO (Multiple Input Multiple Output): Multiple antennas send/receive more data at once.
MU-MIMO (Multi-User MIMO): More than one device can get data simultaneously.
Beamforming: Directs wireless signals toward devices for stronger connection.
OFDMA: Splits spectrum efficiently between devices to reduce wait time.
Channel Bonding: Combines channels for higher speeds.
Multi-Link Operation: Uses multiple frequency bands (Wi-Fi 7) for faster, more reliable connections.

Practical Impact:

Older devices (Wi-Fi 4/n) are slower and cover more area; newer standards (Wi-Fi 6/7) are much faster, handle more devices well, and reduce lag in busy environments.

Essential Wireless Concepts

SSID (Service Set Identifier):

The network name shown when you scan for Wi-Fi.
Naming best practices:

Use unique, clear names (e.g., "HomeNet_5G").
Avoid personal info in SSID.
Hiding SSID can stop casual attempts to join, but isn’t foolproof security.

Example Home Wi-Fi Configuration:

SSID: HomeNet_5G
Security: WPA2 or WPA3 (never WEP)
Channel: 149 (if 5 GHz, to avoid congestion)
Password: Complex, at least 12+ characters

Wireless Security Protocols

Protocol	Security Level	Encryption	Key Features	Status/Use Case
WEP	Very Low	RC4	Weak, easy to crack	Obsolete
WPA	Low/Older	TKIP	Improved but still weak	Not recommended
WPA2	High	AES-CCMP	Strong, industry standard	Recommended
WPA3	Very High	SAE, AES-CCMP	Strongest, easiest setup, improved resistance to attacks	Recommended for new devices

Why Obsolete?

WEP can be cracked in minutes; WPA also has vulnerabilities. Always use WPA2 or WPA3 for secure Wi-Fi.

Channel Management

Frequency Bands:

2.4 GHz: Greater range, but fewer non-overlapping channels (1, 6, 11). More prone to interference (microwaves, Bluetooth, neighbors).
5 GHz: More channels, less crowded, usually faster (but shorter range).
6 GHz: New (Wi-Fi 6E), huge capacity, low congestion, very short range.

Channel Widths:

20 MHz (least interference, most compatible).
40/80/160 MHz (higher speed, risk for interference).

Best Practices:

Use non-overlapping channels (1, 6, 11 for 2.4 GHz).
Select channels with least interference using Wi-Fi analysis tools.
For many access points, stagger channels and lower power to avoid overlap.

Range vs. Speed: Increasing channel width increases speed but may reduce range and add interference.

Wireless Network Design

Site Survey Process:

Physical Assessment:

Map walls, furniture, windows—these affect signal.

RF Analysis:

Use tools/apps to find signal dead zones, measure interference.

Capacity Planning:

Estimate device count for each access point.

Security Requirements:

Choose secure protocols (WPA2/WPA3). Plan for guest networks.

Access Point (AP) Placement Guidelines:

Place APs high up on walls or ceilings for best coverage.
Avoid placing next to metal objects, microwaves, or thick walls.
For large spaces, use multiple APs with overlapping coverage (but different channels).
Use directional antennas or beamforming if available.

Example Scenario:

In a school, APs are placed in hallways at ceiling height, with three APs per floor, each set to a unique 5 GHz channel. RF analysis ensures coverage in classrooms.

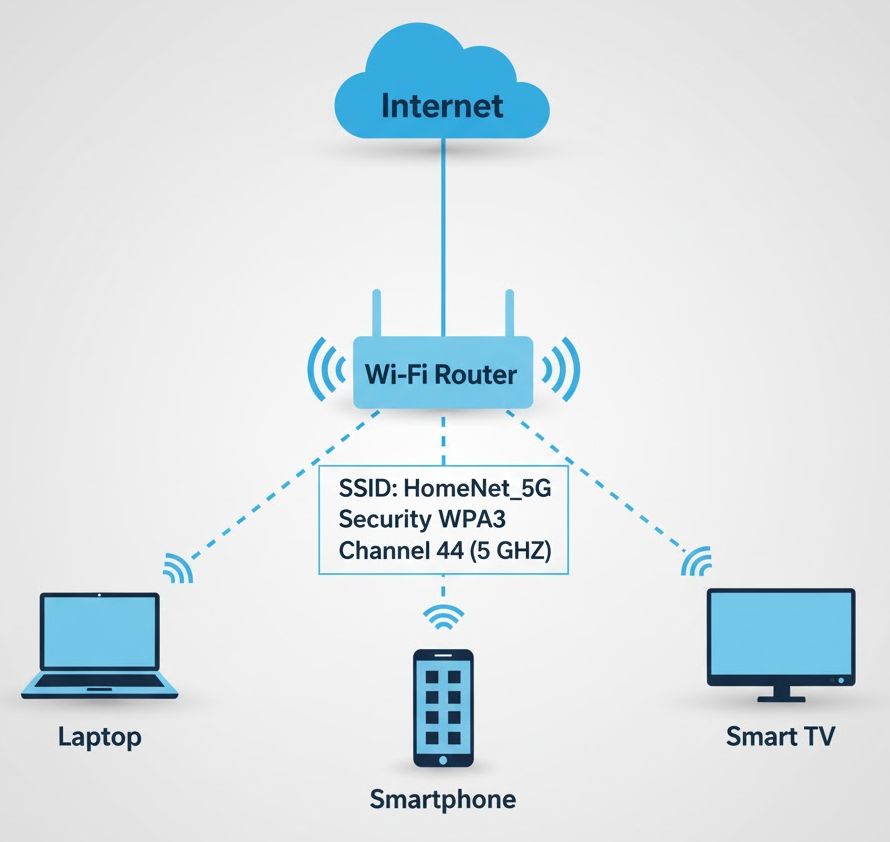

Diagram: Home Wi-Fi Setup

Home network diagram showing a central WiFi router with WPA3 security on channel 44 connecting a laptop, smartphone, and smart TV via 5GHz SSID HomeNet_5G

Tips for Designing & Securing your Wireless Network

Always use WPA2 or WPA3 security.
Change default passwords for routers/APs.
Use strong, unique SSIDs.
Position APs centrally and at height.
Run regular site surveys for large spaces.
Separate guest network from main devices.

8. VPN (Virtual Private Network)

VPN Fundamentals

A VPN creates an encrypted tunnel between two points over an untrusted network (typically the internet), allowing secure transmission of private data

What is a VPN?

A VPN creates a secure, encrypted "tunnel" through a public network (like the internet), allowing private data to travel safely between locations.

Privacy: Encrypts data transmission.
Security: Protects against eavesdropping and tampering.
Remote Access: Allows secure access to internal resources.
Cost Savings: Uses internet instead of expensive leased lines.
Compliance: Meets regulatory requirements for data protection.

Types of VPNs

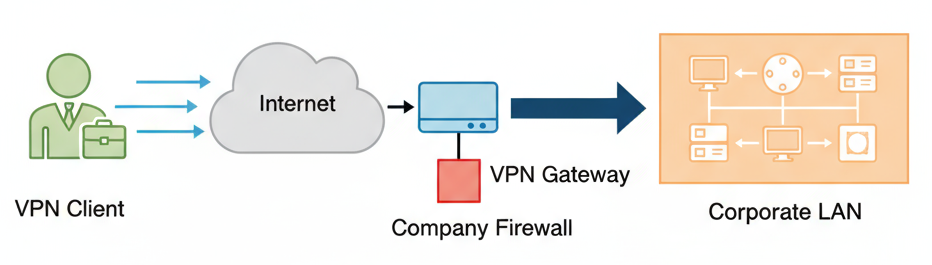

Remote Access VPN

A Remote Access VPN is a secure connection that allows individual users to connect to a private network (like a company's internal network) over the internet from a remote location. It encrypts the data sent between the user's device and the network, protecting it from hackers and eavesdroppers. Commonly used by employees working from home, it lets them safely access files, apps, and resources as if they were at the office.

Characteristics:

Individual users connect to company network.
Client software required on user devices.
Dynamic IP address assignment.
Common protocols: SSL/TLS, IKEv2, OpenVPN.

Use Cases:

Employees working from home.
Traveling staff accessing company resources.
Contractors needing temporary access.

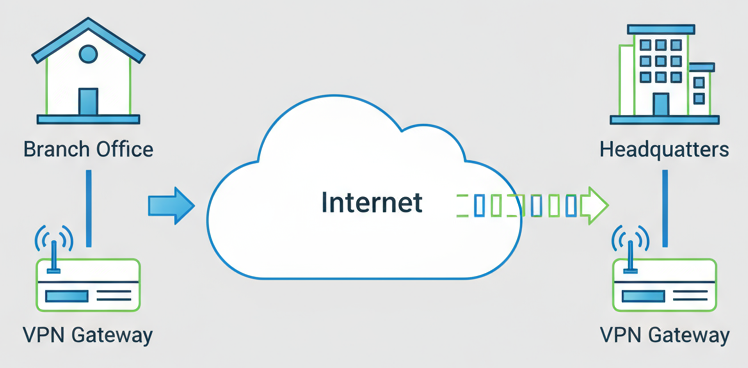

Site-to-Site VPN

A Site-to-Site VPN is a secure connection that links two or more separate networks (such as two different office locations) over the internet. It creates a private, encrypted “tunnel” so that devices at both sites can communicate with each other as if they were on the same local network, protecting data as it travels across public networks. This is commonly used by businesses to connect branch offices securely.

Characteristics:

Connects entire networks together.
Always-on connection.
Static routing configuration.
Common protocols: IPsec, GRE.

Use Cases:

Connecting branch offices to headquarters.
Linking partner company networks.
Disaster recovery site connectivity.

SSL/TLS VPN

Browser-based access (no client software).
Easier to deploy and manage.
Good for limited access requirements.

IPsec VPN

Network-layer encryption.
More complex but more secure.
Supports multiple authentication methods.
Better for site-to-site connections

VPN Protocols

Protocol	Security	Performance	Complexity	Best Use Case
IPSec	Excellent	Good	High	Site-to-site, enterprise
SSL/TLS	Excellent	Good	Medium	Remote access, web-based
OpenVPN	Excellent	Good	Medium	Cross-platform, flexible
WireGuard	Excellent	Excellent	Low	Modern, high-performance
PPTP	Poor	Excellent	Low	Legacy only (deprecated)

Basic VPN Configuration Example

Windows Built-in VPN Client Setup:

1. Network Settings → VPN → Add VPN Connection
2. VPN Provider: Windows (built-in)
3. Connection Name: "Company VPN"
4. Server Name: vpn.company.com
5. VPN Type: L2TP/IPsec with pre-shared key
6. Pre-shared key: [provided by IT]
7. Sign-in info: Domain username/password

Testing VPN connectivity:

# Before VPN connection
ipconfig    # Note your current IP address

# After VPN connection
ipconfig   # Verify new IP address in corporate range

# Test connectivity to internal resources
ping internal-server.company.com
nslookup internal-server.company.com

10. Mini-Project: Virtual Machine Network Lab

Project Objective

Create a controlled networking environment with two virtual machines using static IP addresses. Test connectivity and document the entire process.

Requirements

Oracle VirtualBox (free download from virtualbox.org).
Two Ubuntu Desktop VMs.
Static IP configuration.
Comprehensive connectivity testing.
Professional documentation.

Step-by-Step Instructions

Phase 1: Create Virtual Network Infrastructure

Step 1: Install VirtualBox

Download VirtualBox from https://www.virtualbox.org/.
Install with default settings.
Download Ubuntu Desktop ISO from ubuntu.com.

Step 2: Create Host-Only Network

Open VirtualBox Manager.
File ⟶ Host Network Manager.
Click "Create" to make a new host-only network.
Configure the adapter:

IPv4 Address: 192.168.56.1
IPv4 Network Mask: 255.255.255.0
DHCP Server: Disable (we'll use static IPs)

Phase 2: Create and Configure Virtual Machines

Step 3: Create First Virtual Machine

New ⟶ Name: "NetworkLab-VM1"
Type: Linux, Version: Ubuntu (64-bit)
Memory: 2048 MB
Create Virtual Hard Disk: 20 GB
Settings ⟶ Network:

Adapter 1: Host-only Adapter
Name: vboxnet0

Step 4: Create Second Virtual Machine

New ⟶ Name: "NetworkLab-VM2"
Same specifications as VM1
Settings ⟶ Network:

Adapter 1: Host-only Adapter
Name: vboxnet0

Step 5: Install Ubuntu on Both VMs

Start each VM and install Ubuntu Desktop.
Create user accounts: student1 and student2.
Complete installation and reboot.

Phase 3: Network Configuration

Step 6: Configure Static IP on VM1

# Check interface name
ip link show

# Edit network configuration
sudo nano /etc/netplan/00-installer-config.yaml

VM1 Configuration:

network:
  version: 2
  ethernets:
    enp0s3: # Replace with your interface name
      dhcp4: false
      addresses: [192.168.56.10/24]
      nameservers:
        addresses: [8.8.8.8, 8.8.4.4]

Step 7: Configure Static IP on VM2

VM2 Configuration:

network:
  version: 2
  ethernets:
    enp0s3:
      dhcp4: false
      addresses: [192.168.56.11/24]
      nameservers:
        addresses: [8.8.8.8, 8.8.4.4]

Apply configurations on both VMs:

sudo netplan apply
ip addr show

Phase 4: Connectivity Testing

Step 8: Basic Connectivity Tests

# From VM1 (192.168.56.10):
ping 127.0.0.1             # Test localhost
ping 192.168.56.10         # Test own IP
ping 192.168.56.11         # Test VM2
arp -a                     # Check ARP table

# From VM2 (192.168.56.11):
ping 127.0.0.1             # Test localhost
ping 192.168.56.11         # Test own IP
ping 192.168.56.10         # Test VM1
arp -a                     # Check ARP table/code>

Step 9: Advanced Network Testing

# Network discovery
nmap -sn 192.168.56.0/24   # Scan for active hosts

# Detailed connectivity analysis
traceroute 192.168.56.10   # Should show 1 hop (direct)

Expected Results Documentation

Create a project report with these sections:

1. Network Topology Diagram

    ┌─────────────────┐         ┌─────────────────┐
    │  NetworkLab-VM1 │         │ NetworkLab-VM2  │
    │  192.168.56.10  │         │  192.168.56.11  │
    └─────────┬───────┘         └─────────┬───────┘
              │                           │
              └────────┬──────────────────┘
                       │
            ┌──────────┴───────────┐
            │   VirtualBox Host    │
            │    192.168.56.1      │
            │  (Host-Only Adapter) │
            └──────────────────────┘

2. IP Configuration Summary

VM	Hostname	IP Address	Subnet Mask	Interface	Status
VM1	networklab-vm1	192.168.56.10	255.255.255.0	enp0s3	Active
VM2	networklab-vm2	192.168.56.11	255.255.255.0	enp0s3	Active

3. Connectivity Test Results

# VM1 to VM2 ping results:
PING 192.168.56.11 (192.168.56.11) 56(84) bytes of data.
64 bytes from 192.168.56.11: icmp_seq=1 time=0.234 ms
64 bytes from 192.168.56.11: icmp_seq=2 time=0.187 ms
--- 192.168.56.11 ping statistics ---
2 packets transmitted, 2 received, 0% packet loss

4. ARP Table Analysis

# VM1 ARP table after communication:
Address         HWtype  HWaddress           Flags Mask  Iface
192.168.56.11   ether   08:00:27:XX:XX:XX   C           enp0s3

Troubleshooting Common Issues

Issue: VMs can't ping each other.

Check: Both VMs are on same virtual network (vboxnet0).
Check: IP addresses are in same subnet (192.168.56.0/24).
Check: Netplan configuration applied successfully.
Test: sudo netplan --debug apply.

Issue: Network configuration doesn't persist.

Solution: Ensure YAML indentation is correct in netplan file.
Check: File permissions: sudo chmod 644 /etc/netplan/00-installer-config.yaml.

Issue: Can't resolve domain names.

Solution: Add nameservers to netplan configuration.
Check: nslookup google.com.

Project Extensions (Optional)

Advanced Challenges:

Add a third VM with IP 192.168.56.12.
Install SSH server on all VMs and test remote connections.
Set up file sharing using Samba between VMs.
Monitor network traffic using tcpdump or Wireshark.
Create different subnets and test routing.

Glossary of Networking Fundamentals Tutorial Terms

Term	Definition
ARP (Address Resolution Protocol)	Protocol used to map IP addresses to MAC addresses on a local network
APIPA (Automatic Private IP Addressing)	Feature that automatically assigns IP addresses in the 169.254.0.0/16 range when DHCP is unavailable
Broadcast Address	Special address used to send data to all devices on a network segment (e.g., 192.168.1.255)
CIDR (Classless Inter-Domain Routing)	Method of IP addressing that uses prefix notation (e.g., /24) to define network portions
Class A Network	IP address range 1-126 in first octet, default subnet mask 255.0.0.0, supports 16,777,214 hosts
Class B Network	IP address range 128-191 in first octet, default subnet mask 255.255.0.0, supports 65,534 hosts
Class C Network	IP address range 192-223 in first octet, default subnet mask 255.255.255.0, supports 254 hosts
Default Gateway	Router's IP address that serves as the exit point from a local network to other networks
DHCP (Dynamic Host Configuration Protocol)	Network protocol that automatically assigns IP addresses and network configuration to devices
DHCP Lease	Time period for which a DHCP-assigned IP address is valid (typically 24 hours)
DNS (Domain Name System)	System that translates human-readable domain names (google.com) into IP addresses
DNS Cache	Temporary storage of DNS query results to speed up future requests
DNS Record Types	Different types of DNS entries: A (IPv4), AAAA (IPv6), MX (mail), NS (nameserver), TXT (text)
DORA Process	DHCP four-step process: Discover, Offer, Request, Acknowledge
Ethernet	Common network technology for local area networks using cables and MAC addresses
Host	Any device connected to a network (computer, printer, phone, etc.)
IP Address (IPv4)	32-bit numerical address used to identify devices on a network (e.g., 192.168.1.100)
IP Address (IPv6)	128-bit alphanumeric address format designed to replace IPv4 (e.g., 2001:db8::1)
ISP (Internet Service Provider)	Company that provides internet access and assigns public IP addresses
LAN (Local Area Network)	Network covering a small geographic area like home, office, or building
Loopback Address	Special IP address (127.0.0.1) that refers to the local machine itself
MAC Address	48-bit unique hardware identifier permanently assigned to network interface cards
Multicast	Method of sending data to a specific group of devices simultaneously
NAT (Network Address Translation)	Process of translating private IP addresses to public IP addresses
Network Address	First IP address in a subnet range, identifies the network itself (not assignable to hosts)
Network Interface Card (NIC)	Hardware component that connects a device to a network
OSI Model	7-layer networking model: Physical, Data Link, Network, Transport, Session, Presentation, Application
Ping	Network utility used to test connectivity between devices
Private IP Address	IP addresses reserved for internal network use (10.x.x.x, 172.16-31.x.x, 192.168.x.x)
Public IP Address	Globally unique IP address assigned by ISPs for internet communication
RFC 1918	Internet standard defining private IP address ranges
Router	Network device that forwards data between different networks
Static IP Address	Manually assigned IP address that doesn't change automatically
Subnet	Logical subdivision of an IP network into smaller network segments
Subnet Mask	32-bit number that defines which portion of an IP address represents the network vs. host
Subnetting	Process of dividing a large network into smaller, manageable sub-networks
Switch	Network device that connects devices within a local network using MAC addresses
TCP/IP Model	4-layer networking model: Network Access, Internet, Transport, Application
Traceroute	Network diagnostic tool that shows the path packets take from source to destination
Unicast	Method of sending data from one device to another specific device
VLAN (Virtual Local Area Network)	Logical grouping of devices on different physical network segments
WAN (Wide Area Network)	Network covering a large geographic area, connecting multiple LANs
Wi-Fi	Wireless networking technology based on IEEE 802.11 standards

Additional Networking Terms

Term	Definition
Broadcast Domain	Network segment where broadcast packets are delivered to all connected devices
Default Subnet Mask	Standard subnet mask for each IP class (Class A: /8, Class B: /16, Class C: /24)
FQDN (Fully Qualified Domain Name)	Complete domain name including hostname and domain (e.g., www.google.com)
Hexadecimal	Base-16 number system used for MAC addresses and IPv6 addresses
IP Conflict	Error that occurs when two devices have the same IP address on a network
Link-Local Address	IP address automatically assigned when DHCP fails (169.254.x.x range)
Octet	8-bit portion of an IPv4 address (each number separated by dots)
Port Number	Numerical identifier for specific services or applications (HTTP: 80, HTTPS: 443)
Recursive DNS Query	DNS lookup process where servers query other servers to find the answer
Reserved IP Ranges	Special-purpose IP addresses not used for regular host addressing
Root DNS Servers	Top-level DNS servers that direct queries to appropriate domain servers
TTL (Time To Live)	Value that determines how long DNS records are cached
Virtual Machine (VM)	Software-based computer system running on physical hardware
Wireshark	Network protocol analyzer tool used to capture and examine network traffic

🏁 Conclusion & Next Steps

Congratulations! 🎉 By completing this Networking Fundamentals I tutorial, you have built a strong foundation in networking that will serve you in both academic and real-world scenarios. You now understand:

✅ IP Addressing & Classes – How devices identify and communicate on a network.

✅ MAC Addresses – The permanent hardware identifiers used at Layer 2.

✅ DNS & DHCP – The services that translate names to IPs and automate address assignment.

✅ OSI & TCP/IP Models – The conceptual and practical frameworks of modern networking.

✅ Subnetting – How to divide and manage networks efficiently.

These concepts are the building blocks of IT and cybersecurity, enabling you to troubleshoot networks, configure devices, and prepare for more advanced topics like firewalls, VLANs, VPNs, penetration testing, and ethical hacking.

When you are comfortable with these fundamentals, move on to Networking Fundamentals II, where you’ll dive into routing, switching, VLANs, NAT, firewalls, and packet analysis — preparing you for real-world IT jobs, ethical hacking, and certification exams (CCNA, CompTIA Network+, etc.).

Keep practicing, stay curious, and turn this knowledge into real-world expertise! 🌐💻

Networking Fundamentals II Tutorial: Master VPN, Topology & Wireless Config

Learning Objectives

1. Course Introduction & Objectives

2. Networking Key Terminology & Glossary

Core Networking Terms

Essential Network Acronyms

Quick Reference Cards

Network Troubleshooting Terms

Performance Measurement Terms

3. Network Topology

Physical Network Topologies

Bus Topology

Star Topology

Ring Topology

Mesh Topology

Logical Network Topologies

Modern Network Architectures

Three-Tier Architecture

Summary Table

Diagram:

Why Use Three-Tier Architecture?

Core Layer Functions:

Distribution Layer Functions:

Access Layer Functions:

Topology Selection Criteria

Topology Troubleshooting Scenarios

4. Networking Devices

Device Comparison Table

Hub (Network Hub)

Switch (Network Switch)

Router (Network Router)

Network Interface Card (NIC)

Device Selection Guide

5. LAN vs WAN Networks

Local Area Network (LAN)

Wide Area Network (WAN)

Common WAN Technologies:

LAN vs WAN Comparison

Network Design Considerations

6. Cabling Standards & Infrastructure

Ethernet Cable Categories

Straight-Through Cable (Standard)

Crossover Cable

Color Code Reference Table

Cable Testing and Certification

7. Wireless Networking Basics

Wi-Fi Standards Evolution

Essential Wireless Concepts

SSID (Service Set Identifier):

Wireless Security Protocols

Channel Management

Wireless Network Design

Diagram: Home Wi-Fi Setup

8. VPN (Virtual Private Network)

VPN Fundamentals

What is a VPN?

Types of VPNs

Site-to-Site VPN

VPN Protocols

Basic VPN Configuration Example

Windows Built-in VPN Client Setup:

Testing VPN connectivity:

10. Mini-Project: Virtual Machine Network Lab

Project Objective

Step-by-Step Instructions

Expected Results Documentation

3. Connectivity Test Results

4. ARP Table Analysis

Troubleshooting Common Issues

Project Extensions (Optional)

Glossary of Networking Fundamentals Tutorial Terms

Additional Networking Terms

🏁 Conclusion & Next Steps

Windows File System

Common Network Protocols

About Website

Color Space

Featured Wallpapers (For desktop)

Open-Source Tools Directory
